Industrial Valves

Home / Industrial Valves

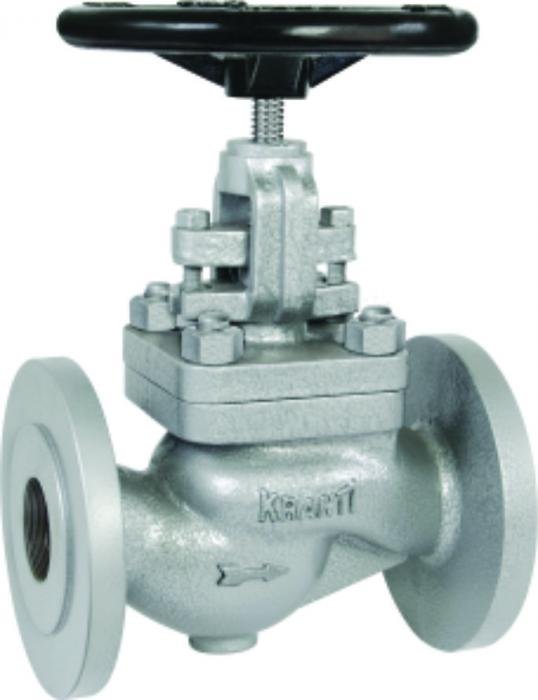

Model No : PV-101A

  • Product Name : Cast Iron Globe Valve
  • Product Standard : BS 5152 / Din 86251
  • Type of Pattern : Straight Pattern
  • Product Description : Bolted Bonnet, Outside Screw & Yoke type Rising Stem
  • Body & Bonnet : Cast Iron as per IBR 86 to 93 Gr. A
  • Type of seat & Disc : Renewable
  • Trim : Stainless Steel (AISI 410)
  • Handwheel : Cast Iron as per IS 210 Gr. FG 200
  • Stud, Nut & Washer : Carbon Steel as per IS 1367
  • Gasket : Steam Joining Sheet as per IS 2712 Gr. W/3
  • Gland Packing : Braided Graphited as per IS 4687
  • Pressure Rating : PN 16
  • Hydraulic Test Pressure : Body 26 Kg/cm2, Seat 17.3 Kg/cm²
  • Working Pressure : Max. BOP 13 Kg/cm²
  • Working Temperature : Max. 220 °C

Model No : PV-101B

  • Product Name : Cast Iron Globe Valve
  • Product Standard :BS 5152 / Din 86251
  • Type of Pattern : Straight Pattern
  • Product Description : Bolted Bonnet, Outside Screw & Yoke type Rising Stem
  • Body & Bonnet : Cast Iron as per IBR 86 to 93 Gr. A
  • Type of seat & Disc : Renewable
  • Trim : Stainless Steel (AISI 410)
  • Handwheel : Cast Iron as per IS 210 Gr. FG 200
  • Stud, Nut & Washer : Carbon Steel as per IS 1367
  • Gasket : Steam Joining Sheet as per IS 2712 Gr. W/3
  • Gland Packing : Braided Graphited as per IS 4687
  • Pressure Rating : PN 10
  • Hydraulic Test Pressure : Body 17 Kg/cm², Seat 11.3 Kg/cm²
  • Working Pressure : Max. BOP 8.5 Kg/cm²
  • Working Temperature : Max. 220 °C
  • End Details : Flanged ends as per DIN 2532 Raised Face.

Model No : PV-101C

  • Product Name : Cast Iron Stop & Non Return Valve
  • Product Standard : BS 5152 / Din 86251
  • Type of Pattern : Straight Pattern
  • Product Description : Bolted Bonnet, Outside Screw & Yoke type Rising Stem
  • Body & Bonnet : Cast Iron as per IBR 86 to 93 Gr. A
  • Type of seat & Disc : Renewable
  • Trim : Stainless Steel (AISI 410)
  • Handwheel : Cast Iron as per IS 210 Gr. FG 200
  • Stud, Nut & Washer : Carbon Steel as per IS 1367
  • Gasket : Steam Joining Sheet as per IS 2712 Gr. W/3
  • Gland Packing : Braided Graphited as per IS 4687
  • Pressure Rating : PN 16
  • Hydraulic Test Pressure : Body 26 Kg/cm², Seat 17.3 Kg/cm²
  • Working Pressure : Max. BOP 13 Kg/cm²
  • Working Temperature : Max. 220 °C
  • End Details : Flanged ends as per DIN 2533 Raised Face.

Model No : PV-101D

  • Product Name : Cast Iron Stop & Non Return Valve
  • Product Standard : BS 5152 / Din 86251
  • Type of Pattern : Straight Pattern
  • Product Description : Bolted Bonnet, Outside Screw & Yoke type Rising Stem
  • Body & Bonnet : Cast Iron as per IBR 86 to 93 Gr. A
  • Type of seat & Disc : Renewable
  • Trim : Stainless Steel (AISI 410)
  • Handwheel : Cast Iron as per IS 210 Gr. FG 200
  • Stud, Nut & Washer : Carbon Steel as per IS 1367
  • Gasket : Steam Joining Sheet as per IS 2712 Gr. W/3
  • Gland Packing : Braided Graphited as per IS 4687
  • Pressure Rating : PN 10
  • Hydraulic Test Pressure : Body 17 Kg/cm², Seat 11.3 Kg/cm²
  • Working Pressure : Max. BOP 8.5 Kg/cm²
  • Working Temperature : Max. 220 °C
  • End Details : Flanged ends as per DIN 2532 Raised Face.

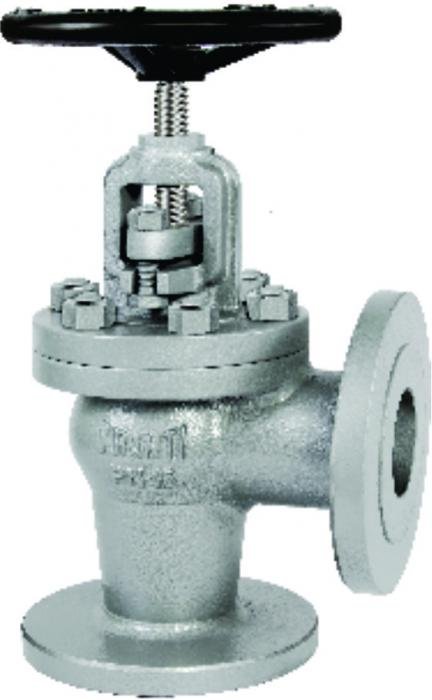

Model No : PV-102A

  • Product Name : Cast Iron Angle Globe Valve,
  • Product Standard : BS 5152 / Din 86251
  • Type of Pattern : Right Angle Pattern
  • Product Description : Bolted Bonnet, Outside Screw & Yoke type Rising Stem
  • Body & Bonnet : Cast Iron as per IBR 86 to 93 Gr. A
  • Type of seat & Disc : Renewable
  • Trim : Stainless Steel (AISI 410)
  • Handwheel : Cast Iron as per IS 210 Gr. FG 200
  • Stud, Nut & Washer : Carbon Steel as per IS 1367
  • Gasket : Steam Joining Sheet as per IS 2712 Gr. W/3
  • Gland Packing : Braided Graphited as per IS 4687
  • Pressure Rating : PN 16
  • Hydraulic Test Pressure : Body 26 Kg/cm², Seat 17.3 Kg/cm²
  • Working Pressure : Max. BOP 13 Kg/cm²
  • Working Temperature : Max. 220 °C
  • End Details : Flanged ends as per DIN 2533 Raised Face.
